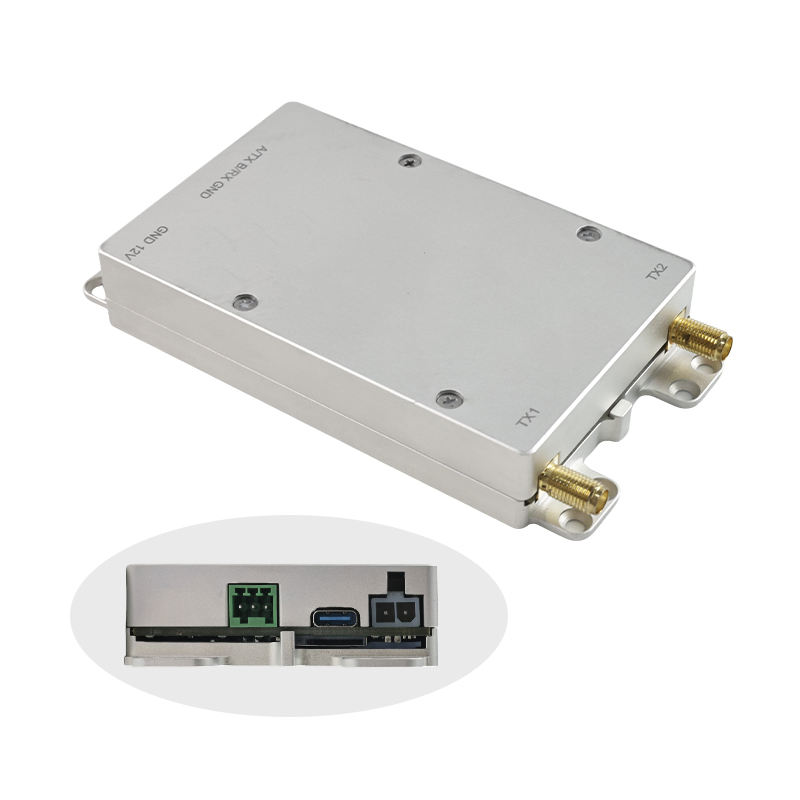

The 70 MHz–6 GHz Digital RF Signal Source Module is a compact, programmable wideband signal generator designed for RF testing, wireless signal simulation, and electronic countermeasure applications. It covers 70 MHz to 6 GHz and provides dual-channel RF outputs with flexible waveform and signal configuration. The module can be integrated with broadband amplifier modules to build complete multi-band RF systems for complex electromagnetic environments.
Key Features
Ultra-Wideband Coverage — 70 MHz–6 GHz, supporting a broad range of RF applications.
Dual-Channel RF Output — Two SMA RF outputs enable simultaneous signal transmission.
Programmable Signal Generation — Flexible frequency and waveform configuration with fast frequency sweeping.
Multiple Waveforms — Supports LFM, GFSK, noise, and other configurable signal types.
Frequency Window Masking — Precisely defines protected frequency ranges to minimize interference with designated signals.
Adjustable RF Output Power — Flexible power configuration for seamless integration with external RF amplifiers.
RS485 Control Interface — Supports remote control, system integration, and secondary development.
Compact Modular Design — Easy to integrate into customized and embedded RF equipment.
Rugged Deployment — Wide operating temperature range for outdoor and vehicle-mounted applications.
OEM & Customization — Flexible customization of frequency plans, output power, waveform parameters, and communication protocols.
Typical Applications
UAV / Anti-Drone RF Countermeasure Systems
Broadband RF Signal Suppression & Communication Countermeasure Equipment
Wireless Signal Simulation & RF Laboratory Testing
