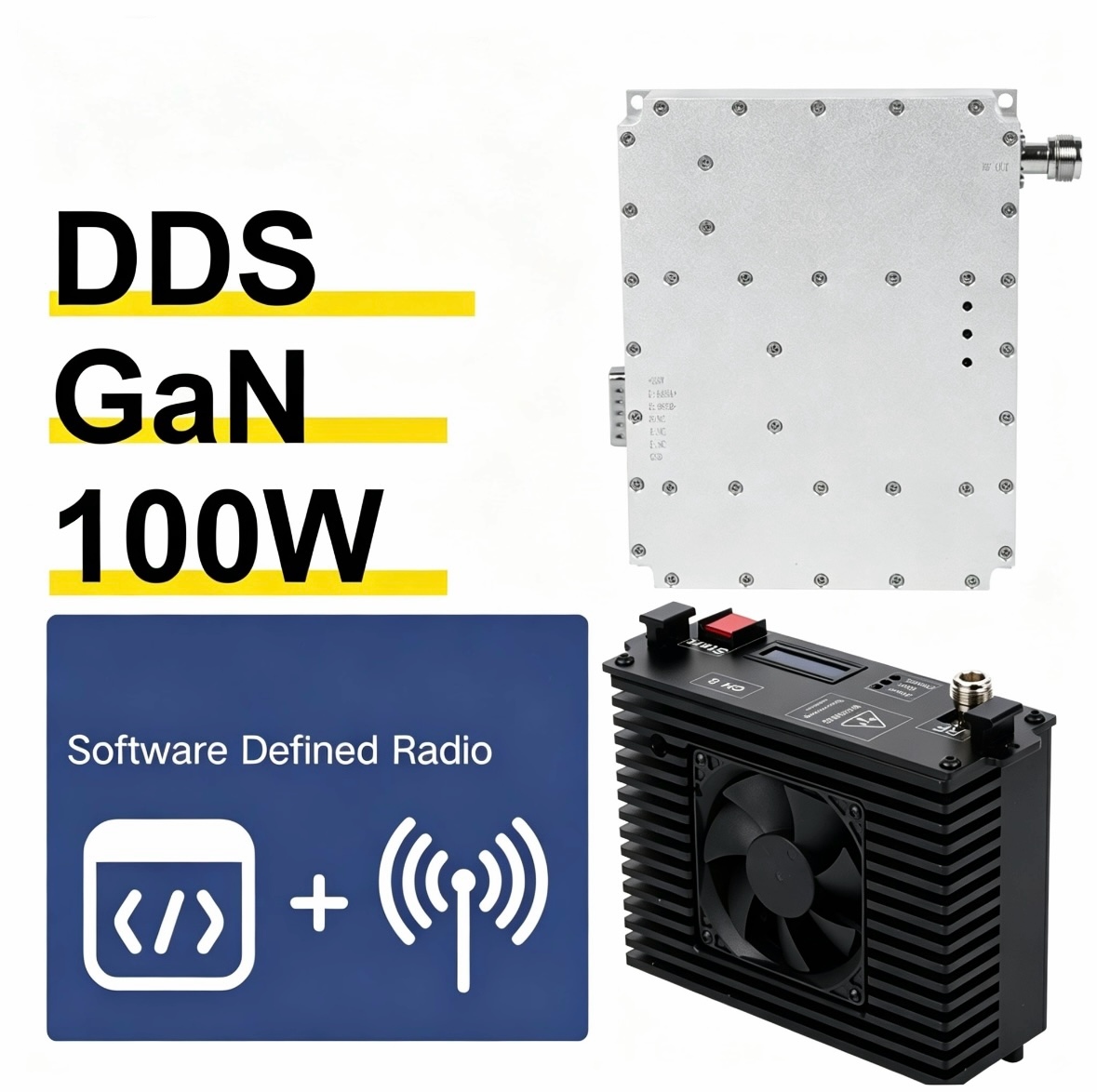

With dedicated monitoring software, users can remotely configure frequency, output power, switching status, address codes, and other parameters while automatically monitoring module status. The system can manage hundreds of modules simultaneously, significantly simplifying system deployment and maintenance.
An optional LCD display provides real-time information including frequency, output power, voltage, current, temperature, and operating status, making the module suitable for integration into complete RF equipment and customized system solutions.

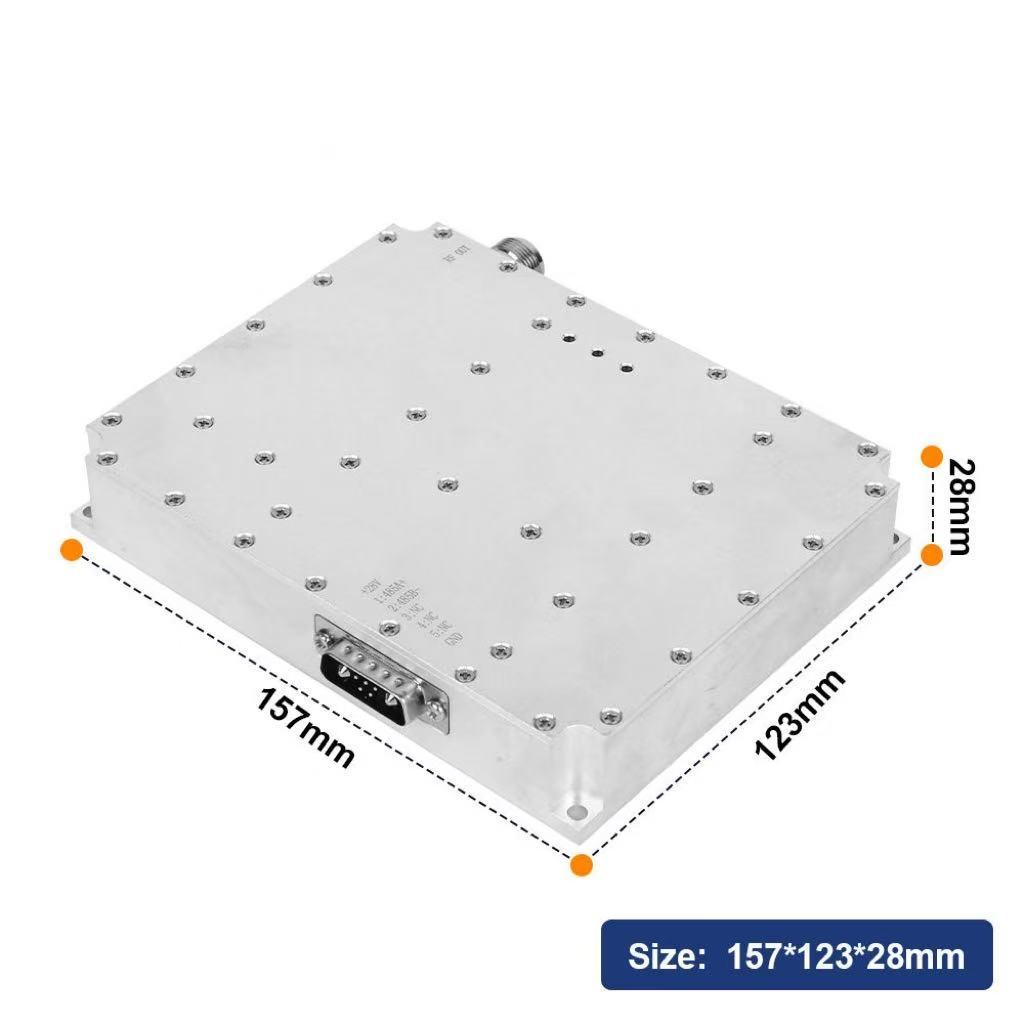

| Test Items | Parameter | Technical Parameter |
|---|---|---|
| Power Amplifier | Frequency Range (MHz) | 800–1200 MHz |
| Frequency Range (MHz) | 1200–1500 MHz | |
| Frequency Range (MHz) | 1500–1800 MHz | |
| Frequency Range (MHz) | 1800–2200 MHz | |
| Frequency Range (MHz) | 2200–2500 MHz | |
| Frequency Range (MHz) | 2500–2800 MHz | |
| Frequency Range (MHz) | 2800–3100 MHz | |
| Frequency Range (MHz) | 3100–3300 MHz | |
| Frequency Range (MHz) | 3300–3600 MHz | |
| Frequency Range (MHz) | 3600–4000 MHz | |
| Frequency Range (MHz) | 4000–4500 MHz | |
| Frequency Range (MHz) | 4500–5000 MHz | |
| Frequency Range (MHz) | 5000–5500 MHz | |
| Output Power (dBm) | 50 ± 1 dBm | |
| Time Delay | < 1 μs | |
| Gain (dB) | 50 ± 1.0 | |
| Ripple in Band (dB) | ≤ 2 | |
| Input VSWR | ≤ 1.5 | |
| Output VSWR | ≤ 1.5 | |
| Power Supply | — | +28 VDC @ 50W/6.5A (According to frequency) |
| RF Connector | — | N-50KFD |
| Operating Temperature | — | −20 to +80°C |
| Dimension (mm) | Length × Width × Height | 175 mm × 164 mm × 60 mm |
| Input Signal Source | — | Built-in DDS Signal Source |
| Mode of Communication | — | RS485 |
| Cooling | — | Built-in radiator and fan, can work independently |
